elio XL-9310 USB
elio XL-9310 USB

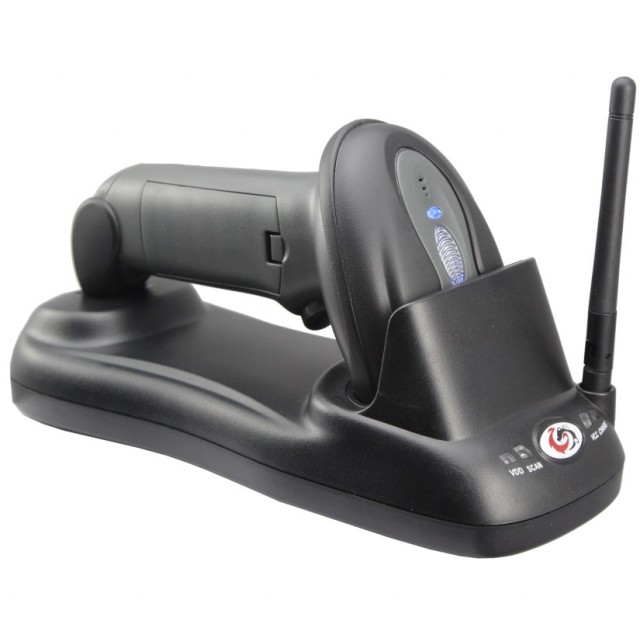

Bezdrátová laserová čtečka čárových kódů s dokovací stanicí, umožňuje pracovat ve skladech a obchodech na velkých plochách, jeho rozsah dosahuje až 600m v otevřeném prostoru. Má robustní a odolnou konstrukci, která zaručuje dlouhou životnost. Je vybaven dvěma vyměnitelnými bateriemi.
| XL-9310 Wireless Barcode Scanner | ||||
| Wireless induction charge without cable | ||||
| The battery can be easily taken from the scanner | ||||
| 1 base frame can support 99 scanners | ||||
| The communication distance on open places is up to 600m | ||||
| Antiknock design: withstand 1.5M drops | ||||
| Service life of button reaches up to 50 million times | ||||
| Supporting the RS232,PS2 and USB interface | ||||
| Full independent intellectual property rights | ||||
| ( having been award with multiple national patents) |
||||
| XL-9310 Technical Specifications | ||||
| PERFORMANCE PARAMETER | ||||
| Light Source | Visible Laser Diode 650nm | |||
| Scan Pattern | Single Scan & Manual | |||
| Working Frequency Range | 433 MHz ISM frequency | |||
| Communication Distance | Up to 600m at open places | |||
| Scan Rate | 100 times/second | |||
| Scan Precision | 0.10mm(pcs0.9) | |||
| Scan Width | 30mm@scan window, 220mm@200mm | |||
| Scan Depth of field | 0-250mm (0.33mm pos0.9) | |||
| Decode Capability | EAN-8, EAN-13, UPC-A, UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc. | |||
| Tilt & Elevation & Deflection | 30°& 65°& 55° | |||
| Support Inferface | RS232, PS2 and USB | |||
| Print Contrast | 30% UPC/EAN 100% | |||
| Mention Pattern | Buzzer, Indicator | |||
| MECHANICAL PARAMETER | ||||
| Size | L x W x H: 95mm x 70mm x 160mm | |||
| Weight | 158g | |||
| Material | ABS + PC | |||
| Cable | Standard 2M straight | |||
| ELECTRICAL PARAMETER | ||||
| Battery Capability | 900mAh | |||
| Voltage | 12Volts | |||
| Operating Current | 85mA | |||
| Static Current | 36mA | |||
| Laser Class | Meet the Grade I National Criteria for Laser Safety | |||
| EMC | CE & FCC DOC compliance | |||
| ENVIRONMENTALPARAMETER | ||||
| Operating Temperature | 0°Cto45°C | |||
| Storage Temperature | -20°C to60°C | |||
| Humidity | 5% to 85% relative humidity, non-condensing | |||
| Light Levels | Daylight, 5000Lux | |||
| Shock | Designed to withstand 1.5M drops | |||
elio XL-9310 USB
| Záruka | 12 měsíců |
|---|---|
| Komunikační rozhraní | USB |
